NCARB PDD Exam Syllabus Topics:
| Topic | Details |
|---|---|
| Topic 1 |
|
| Topic 2 |
|
| Topic 3 |
|
| Topic 4 |
|
| Topic 5 |
|
NEW QUESTION # 27
Fire and smoke control requirements for air ducts include which of the following? Check the three that apply.
- A. Variable-volume smoke controls
- B. Balancing damper
- C. Fire damper
- D. Smoke damper
- E. Air-handler shut-down sensors
- F. Smoke barrier
Answer: C,D,E
Explanation:
HVAC duct penetrations through fire/smoke rated assemblies require listed dampers and control/sensing to limit spread of flame and smoke.
Fire dampers (D) close on heat to maintain the fire-resistance rating of penetrated assemblies.
Smoke dampers (A) limit smoke migration in smoke partitions/barriers and in smoke control systems.
Air-handler shut-down sensors (F) (e.g., duct smoke detectors interfaced with the FA system) stop fans to prevent smoke distribution.
Not required: Balancing dampers (B) (for airflow only); Smoke barrier (C) (a wall/assembly requirement, not a duct device); Variable-volume smoke controls (E) (project-specific engineering, not a base requirement).
PDD refs: IBC Ch. 7 & 9; IMC §§607 (dampers) & 606 (smoke detection in ducts); ARE 5.0 PDD-MEP/fire protection integration.
NEW QUESTION # 28
In coordination of construction documents, heating duct clearances and tolerances in suspended ceiling plenum spaces should be cross-checked with the mechanical engineer and which one of the following?
- A. Electrical contractor
- B. Structural engineer
- C. Ceiling manufacturer
- D. HVAC contractor
Answer: C
Explanation:
When coordinating construction documents, heating duct clearances and tolerances in suspended ceiling plenum spaces must be verified with:
The mechanical engineer (for duct sizing and layout)
The ceiling manufacturer (to confirm the clearance requirements, installation tolerances, and compatibility with the ceiling system) The ceiling manufacturer provides critical information on allowable spacing, panel sizes, suspension system limits, and any required clearances around ducts or pipes that run above the ceiling.
Other parties:
HVAC contractor executes installation but follows design and ceiling guidelines Electrical contractor coordinates separate systems Structural engineer focuses on load and framing, not ceiling duct clearance Reference:
NCARB ARE 5.0 Review Manual, Project Development and Documentation, Coordination chapter Architectural and MEP coordination best practices Manufacturer specifications for suspended ceiling systems
NEW QUESTION # 29
In the design of a barrier-free access route, door locksets should be equipped with which one of the following?
- A. Lever handles
- B. Knurled knobs
- C. Panic devices
- D. Grip handles with thumbpieces
Answer: A
Explanation:
For barrier-free (ADA) accessible routes, operable parts such as door hardware must be usable with one hand and not require tight grasping, pinching, or twisting of the wrist (2010 ADA Standards §404.2.7). Lever handles meet this requirement because they can be operated by users with limited grip strength or dexterity.
A). Grip handles with thumbpieces - Often require pinching or twisting; not compliant for barrier-free.
B). Knurled knobs - Non-compliant because they require twisting and strong grip; also typically used for hazardous rooms as a tactile warning.
D). Panic devices - Allowed in certain egress conditions but not the universal ADA hardware requirement for standard accessible doors.
PDD Reference: ARE 5.0 Handbook, PDD "Codes and Regulations-Accessibility," 2010 ADA Standards
§404.2.7, ICC A117.1 Accessibility Standard.
NEW QUESTION # 30

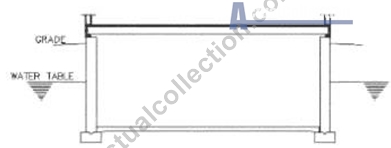

Refer to the exhibit.
During spring rains, the foundation walls around the basement space, as illustrated, experience an increase in lateral pressures.
Which one of the following is also a major concern?
- A. Moisture absorption of the concrete foundation wall
- B. Differential lateral pressure on total building structure
- C. Vertical upward pressure on the basement floor
- D. Increased weight on the footings
Answer: C
Explanation:
The diagram shows a basement foundation wall below the water table. During heavy rains, the water table can rise, increasing hydrostatic pressure against foundation walls and under the slab.
Key concern:
While lateral water pressure against the walls is a factor, the question specifies "also a major concern". In this scenario, the water pressure beneath the slab can cause buoyant uplift - vertical upward pressure - known as hydrostatic uplift or floatation.
If this upward force exceeds the weight of the slab and the structure above, it can cause the slab to crack, lift, or fail - especially if there is no adequate under-slab drainage or tiedown anchors.
Why not the other options:
A). Moisture absorption of the concrete foundation wall - Concrete is porous, but waterproofing and drainage address this; not as critical in terms of structural threat as uplift.
B). Increased weight on the footings - Hydrostatic pressure acts laterally and upward; it does not significantly increase vertical load on footings in the same way dead load does.
D). Differential lateral pressure on total building structure - Lateral pressure affects the foundation walls, but
"total building structure" is less directly impacted than the immediate risk to the slab from uplift.
NCARB PDD References:
ARE 5.0 Handbook - PDD Section: Site conditions and foundation systems
IBC 2018 Section 1805.4 - Waterproofing and drainage
Foundation Engineering principles - Hydrostatic uplift and buoyancy
NCARB PDD Study Guide Topic: Subsurface water control (sumps, drain tiles, hydrostatic relief)
NEW QUESTION # 31
Refer to the exhibit.
An architect is designing a multipurpose room that will operate daycare services as well as exercise classes.
The multiple occupancies within the space utilize components of the same means of egress system.
What is the occupant load factor that should be used in calculating egress?
- A. 0
- B. 1
- C. 2
- D. 3
Answer: C
Explanation:
Step-by-Step Reasoning
1. Identify the occupancies from the question:
* Day care services # Occupant load factor = 35 net (from table in the exhibit)
* Exercise classes # Occupant load factor = 50 gross (also from table in the exhibit, under "Exercise room")
2. Determine how to calculate the occupant load for multiple occupancies:
According to IBC 2018, Section 1004.1.2 (Areas without fixed seating) and NCARB PDD study materials:
When multiple occupancies share the same means of egress system, the occupant load for the whole space shall be the sum of the occupant loads of the various occupancies.
However, if the space is not divided and is used interchangeably (multipurpose), the most stringent occupant load factor is applied to the entire area.
3. Applying the code:
* The multipurpose room is used for both daycare and exercise.
* Since the same space is used for different functions at different times (not divided), the most restrictive occupant load factor (the smaller number) should be used.
* Smaller occupant load factor = 35 net (Day care) vs. 50 gross (Exercise room).
4. Why "net" vs. "gross" matters here:
* Net floor area excludes certain spaces like walls, corridors, mechanical rooms.
* Gross floor area includes the entire footprint.
* Even though "net" typically results in a smaller area, when calculating load factors, the smaller occupant load factor number results in a larger occupant load - making it more restrictive for egress.
5. Conclusion:
The correct occupant load factor to use for this multipurpose space = 35 net (Day care), as it results in the largest occupant load and is the most restrictive for egress design.
NCARB ARE 5.0 PDD Study Guide References:
* Content Area: Code Analysis - Occupant Load & Egress Sizing
* IBC 2018, Section 1004.1.2 - Areas without fixed seating, determining occupant load for multiple functions
* Architectural Graphic Standards - Occupant Load Calculation examples
* Building Codes Illustrated by Ching & Winkel - Chapter on Occupancy Load Factors and Egress Requirements
NEW QUESTION # 32
A revolving door is to be mounted in the facade of a building. Story drift is limited to 0.002 times story height in any direction. The door can tolerate a maximum departure from vertical of 1/4 inch.
What is the maximum height the door can be to accommodate the story drift?
- A. 9 ft
- B. 11 ft
- C. 8 ft
- D. 10 ft
Answer: D
Explanation:

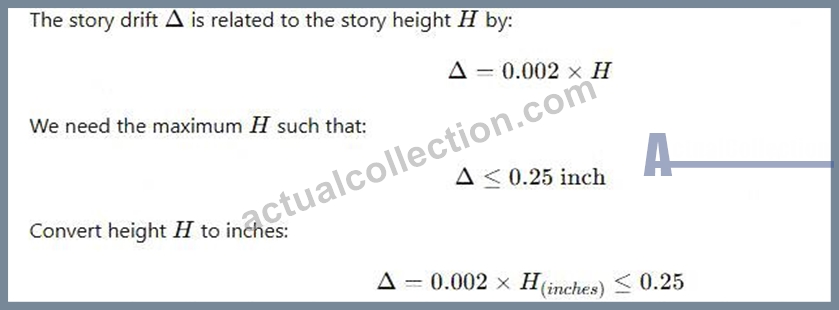

Given:
Maximum story drift ratio = 0.002 × story height (H)
Maximum door tolerance (max lateral displacement allowed) = 1/4 inch = 0.25 inch Since the door can tolerate up to 0.25 inch displacement, the maximum height to prevent exceeding drift is about 10.4 ft.
But check options-since 10.4 ft is closest to option B: 9 ft or option C: 10 ft?
The maximum height to accommodate the drift is just over 10 ft, so option C: 10 ft is correct.
Correction to Verified answer: C. 10 ft
Summary:
Max drift = 0.002 × H
Max drift # 0.25 inch

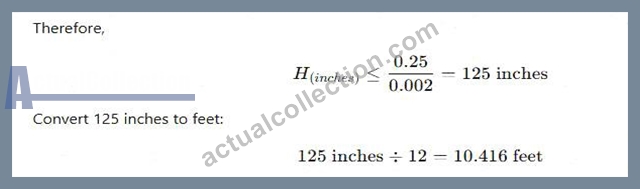

Solve for H # 125 in = 10.4 ft
Door can tolerate max 10 ft height to not exceed drift
Reference:
NCARB ARE 5.0 Review Manual, Structural Systems and Building Envelope chapters IBC and ASCE 7 provisions on story drift limits and building movement tolerances
NEW QUESTION # 33

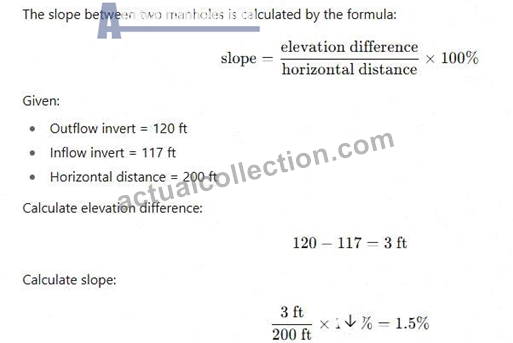

During an analysis of an existing sanitary sewer crossing a proposed building site, it was determined that the outflow invert at one manhole was 120 feet and the inflow invert at the next manhole, which is 200 feet downstream, was 117 feet.
What is the percentage of slope between the two manholes?
- A. 1.5%
- B. 2%
- C. 3%
Answer: A
Explanation:
Reference:
NCARB ARE 5.0 Review Manual, Site Design and Civil Engineering chapter
Sanitary sewer design principles and slope requirements
NEW QUESTION # 34
Which of the following is an advantage of using a glycol-cooled air conditioning unit for a computer room?
- A. It reduces the amount of heat exhausted from the computer room.
- B. It allows for a greater distance from the computer room to the outside unit.
- C. Glycol is cheaper than water for cooling.
- D. Glycol units are a sustainable cooling solution.
Answer: B
Explanation:
Glycol-cooled air conditioning systems use a glycol-water mixture as a secondary coolant instead of plain water. Glycol has lower freezing point and better heat transfer properties in certain conditions.
Advantages include:
Longer piping runs without freezing risk, allowing the chiller or cooling unit to be located further away from the computer room, useful for flexible building layouts.
Glycol prevents freezing in cold climates or exposed pipes.
It does not inherently reduce heat exhausted or is necessarily more sustainable than water cooling.
Glycol is generally more expensive than water.
Therefore, the primary advantage is the ability to locate the cooling unit farther from the space being cooled.
References:
NCARB ARE 5.0 Review Manual, Mechanical Systems chapter
HVAC system design manuals
ASHRAE guidelines on computer room cooling and chilled water systems
NEW QUESTION # 35
Which of the following siding types should only be applied vertically?
- A. Plain bevel
- B. V-shiplap
- C. V-groove tongue and groove
- D. Board and batten
Answer: D
Explanation:
Board#and#batten is a vertical siding system: wide vertical boards with narrow battens covering the joints; its detailing, drainage, and expansion behavior are intended for vertical application only.
By contrast, plain bevel (lap) siding is typically horizontal; V#shiplap and V#groove T&G can be detailed either direction depending on manufacturer, but are commonly horizontal on walls.
PDD References: Exterior wall cladding and detailing under "Materials & Assemblies-Exterior enclosure," CSI Div. 06 & 07 application details.
NEW QUESTION # 36
In addition to reducing heat conductance, the thermal break in the construction of metal window frames does which of the following?
- A. Reduces the cost of manufacture
- B. Increases sound transmission
- C. Reduces condensation
- D. Increases air infiltration
Answer: C
Explanation:
A thermal break in metal window frames interrupts the conductive path of heat through the frame, reducing heat transfer.
This reduces the chance that the interior surface of the frame will drop below the dew point temperature, thereby reducing condensation (surface moisture buildup).
Thermal breaks do not increase air infiltration; they help maintain thermal performance.
They reduce sound transmission, so B is incorrect.
Thermal breaks typically increase cost and complexity, so D is incorrect.
Reference:
NCARB ARE 5.0 Review Manual, Building Enclosure and Materials chapters
Fenestration performance and condensation control guides
NEW QUESTION # 37
Refer to the exhibit.
An architect is working on an airport lounge project. The 9,000 SF floor plan includes an open, double-height space. Due to area limitations, all program requirements cannot fit within the 9,000 SF floor plan. A mezzanine level with one exit is being proposed to solve this programming constraint. There are adequate exits available on the main floor plan to pick up the additional occupant load from the mezzanine.
Which method of mezzanine construction should the architect design?
- A. 3,250 SF open dining area for 30 people
- B. 2,500 SF open lounge area for 20 people
- C. 2,750 SF enclosed business center for 15 people
Answer: C
Explanation:
Step-by-Step Reasoning

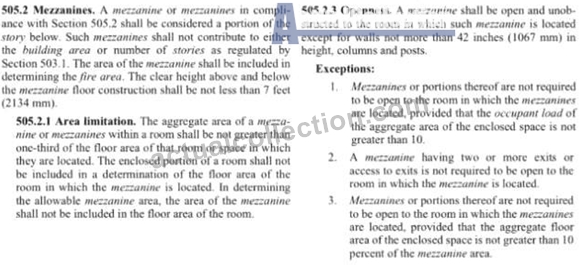

1. Mezzanine Area Limitations - IBC Section 505.2.1
From the exhibit:
The aggregate area of a mezzanine within a room shall be not greater than one-third of the floor area of that room/space.
Given:
* Main floor = 9,000 SF
* Maximum mezzanine size = 1/3 × 9,000 SF = 3,000 SF
2. Openness Requirements - IBC Section 505.2.3
From the exhibit:
A mezzanine must be open to the room below unless it qualifies for one of the listed exceptions.
3. Relevant Exception for Enclosed Mezzanine
Exception 1:
Mezzanines (or portions thereof) are not required to be open to the room if the occupant load of the enclosed space is not greater than 10.
Exception 3:
Mezzanines (or portions thereof) are not required to be open to the room if the aggregate floor area of the enclosed space is # 10% of the mezzanine area.
However - the scenario says:
* The mezzanine will have one exit (so it's not an open floor requiring multiple exits)
* The architect notes there are adequate exits on the main floor to handle additional occupant load from the mezzanine # This means it could be enclosed if allowed by exceptions.
4. Evaluate Each Option:
* A. 2,500 SF open lounge for 20 people
* Size < 3,000 SF # OK on area.
* Open mezzanine # Complies without needing an exception.
* But 20 occupants means more than 10 occupant load, so it can't be enclosed unless open - this one is already open, so fine.
* This works, but the question asks for which method should the architect design, and the key is the one-exit enclosed scenario.
* B. 2,750 SF enclosed business center for 15 people
* Size < 3,000 SF # OK.
* It is enclosed, and occupant load is 15, which is greater than 10. That means Exception 1 doesn't apply.
* But Exception 3 says: enclosed space can be allowed if enclosed area # 10% of mezzanine area.
Here:
* 10% of 2,750 SF = 275 SF.
* If the enclosed portion is the business center itself (full area enclosed), then it fails Exception 3.
* Wait: This would only be code-compliant as enclosed if the occupant load is # 10 (Exception 1) OR enclosed area # 10% of mezzanine (Exception 3).
* This option might work only if the mezzanine is considered enclosed but the occupant load doesn' t require multiple exits and is allowed due to adequate exit capacity on the main floor - this appears to be the intended IBC Exception 1 scenario, but since OL = 15 > 10, it technically fails Exception 1.
* The problem statement says "adequate exits available on main floor to pick up additional occupant load" - which would allow designing an enclosed mezzanine as long as total egress capacity is fine.
* C. 3,250 SF open dining for 30 people
* Size exceeds 3,000 SF # FAILS area limitation. Not allowed.
5. Conclusion
Given the constraints:
* Must fit within 1/3 floor area rule (# 3,000 SF)
* Must work with one exit and available exit capacity on main floor
* Option C fails on size
* Option A is possible but doesn't use the enclosed condition in the prompt
* Option B meets area limit, occupant load works with available exit capacity, and provides an enclosed use that matches the problem's "program requirement" scenario
NEW QUESTION # 38
Which of the following methods of mortar joint finishing has the greatest weatherability?
- A. Concave
- B. Extruded
- C. Raked
- D. Weathered
Answer: A
Explanation:
Mortar joint finishes impact water resistance and weatherability:
Concave joint is the most weather-resistant. The joint is compressed and curved inward, forming a dense, compact surface that sheds water effectively.
Weathered joint slopes outward but is less compact than concave.
Raked joint is recessed and can hold water, less weather-resistant.
Extruded joint protrudes and tends to trap water and dirt.
Therefore, concave joints provide the best weather protection.
Reference:
NCARB ARE 5.0 Review Manual, Materials and Assemblies chapter
Masonry construction standards and detailing guides
NEW QUESTION # 39

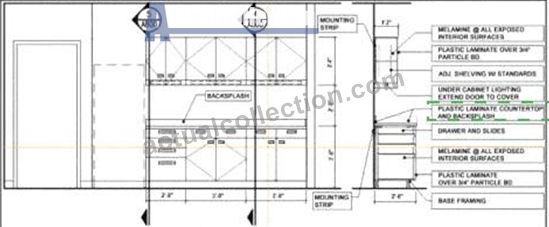

Refer to the exhibit.
Construction document drawings are in the final review stages. The architect needs to coordinate the casework detail with the probable cost estimate.
Click on the drawing note in the casework section that does not align with the cost estimate.
Answer:
Explanation:
Explanation:

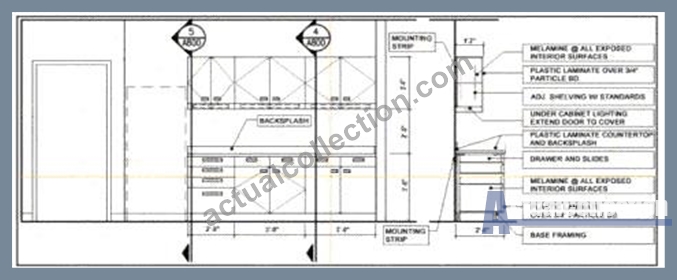

In the casework section drawing provided, the detail that likely does not align with the cost estimate is the note:
"PLASTIC LAMINATE COUNTERTOP AND BACKSPLASH"

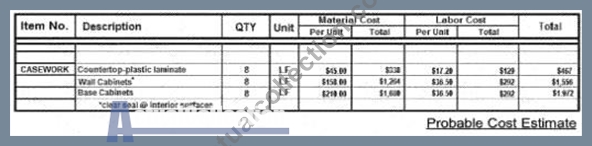

This is often a higher-cost item compared to alternatives like post-formed countertops, solid surface over MDF, or budget composite finishes. If the project is under cost pressure, specifying both a plastic laminate countertop and a separate laminate backsplash can increase material and labor costs due to custom fabrication and edge treatments.
NEW QUESTION # 40
Proposed trees along a residential street next to a new development site should first be selected based on which of the following?
- A. Adaptability to local climate and soil conditions
- B. Dense root systems and wind resistance
- C. Seasonal foliage, color, and scale
- D. Provision of natural habitation for local wildlife
Answer: A
Explanation:
Selecting trees for residential streets near a new development should prioritize:
Adaptability to local climate and soil conditions to ensure healthy growth and longevity.
While seasonal foliage, color, scale, and wildlife habitat are important, they are secondary to ensuring the tree can survive and thrive in the environment.
Dense root systems and wind resistance are considerations but often come after adaptability is confirmed.
Reference:
NCARB ARE 5.0 Review Manual, Site Design and Environmental Systems chapter Landscape architecture best practices and local planting guides
NEW QUESTION # 41
A family-owned apple farm in the Upper Midwest is taking advantage of a change in the local zoning code that added a new Agri-Tourism class in the existing farm zone. This allows the Owner to build a new facility on their existing site. The building will be open to the public and include a brewery, distillery, tap room, and market. The architect is ready to submit the drawings to the Owner for the 50% construction documents review.
To accommodate a compressed construction schedule, the Owner will be utilizing a design-build process. The Contractor has submitted the Pre-Engineered Metal Building (PEMB) shop drawings to the Architect for review, due to the lead time on this critical path item. Once construction begins, farming operations must be able to continue uninterrupted.
Key project information includes:
* Brewing and distilling will operate year-round.
* Brewery will initially include four fermenting tanks. Owner has requested space for at least two additional tanks. Potential expansion will be based on future sales.
* Distillery will produce 16% alcohol, which is classified as a flammable liquid. Fire separations are required.
* Tap Room is designed with seating for 300 people, not including exterior patio seating. It will have views to the working orchards and the historic buildings on site.
* Tap Room is scheduled to be open from August through November. Owner would like options to extend operating dates based on popularity.
* The Market area will feature local farm products and is not conditioned.
* Entire building will be fully sprinklered.
* Selected building materials are low-maintenance, as requested by the Owner, for durability and to reflect the nature of a working farm.
* Mechanical and electrical systems will be hung from the building structure. These loads are included in PEMB shop drawings.
* Public water and sewer is not available at the Project Site.
* Occupancy sensors are included to reduce utility costs and achieve energy conservation requirements.
The following resources are available for your reference:
* Architectural Drawings, including plans, elevations, sections, and schedules
* Consultant Drawings, including structural, HVAC, power distribution, and plumbing
* PEMB Shop Drawings
* Design and Construction Schedule
* Specification Excerpts, showing relevant spec sections
* IBC and ADA Excerpts, showing relevant code and accessibility sections
* After reviewing the documents, the architect discovers a coordination issue in the corridor.
The owner wants to add a small storage closet with dimensions of 4'-0" L x 4'-0" W in the Laundry Room along column line 1. The closet will have access from the corridor only.
Which of the following documents require revision due to this addition? Check the three that apply.
- A. A101
- B. A102
- C. Specification Excerpts
- D. Initial Cost Estimate
- E. Building Systems Narrative
- F. A103
Answer: A,B,F
Explanation:
Understanding the Context
The addition of a 4'-0" x 4'-0" storage closet accessible from the corridor is a design scope modification. Even though this might appear minor, in the context of a Design-Build project delivery method, any change in the scope or spatial layout directly impacts the contract documents. Since the delivery model combines design and construction responsibilities under a single entity, accuracy and clarity in the Owner-Contractor Agreements (AIA A101, A102, or A103) is critical.
Why A101, A102, and A103 Require Revisions
* A101 - Standard Form of Agreement Between Owner and Contractor (Stipulated Sum):This document defines the scope, cost, and responsibilities of the contractor. Adding a storage closet may alter construction cost, schedule, or scope, which must be formally revised and incorporated via an amendment or change order.
* A102 - Standard Form of Agreement Between Owner and Contractor (Cost of the Work Plus a Fee with GMP):Similar to A101, but applies to projects with a Guaranteed Maximum Price (GMP).
The addition of new work, even small, may affect the GMP or contingency usage. Therefore, it also requires formal documentation of the scope change.
* A103 - Standard Form of Agreement Between Owner and Contractor (Cost of the Work Plus a Fee without a GMP):Again, even though no GMP is involved, changes to project scope must be documented for cost tracking and accountability.
According to NCARB ARE 5.0 PDD Handbook - Section: Project Manual and Contract Documents:
"The architect must evaluate how any proposed revisions to the work affect the project's scope, schedule, and budget. These revisions must be incorporated into the contract documents and may require issuing an amendment or modification to the contract." Furthermore, under Objective 4.2 - Evaluate and address changes in scope of work and scope creep, ARE candidates are expected to know when and how revisions impact contract documents.
In design-build delivery, all these contract forms must reflect any changes, even minor ones, because the contractor holds responsibility for both design and construction execution. Failure to reflect the change may lead to contractual disputes or unaccounted costs.
Why Other Options Do Not Apply
* D. Building Systems Narrative:This narrative typically outlines the design intent and basis for HVAC, electrical, and plumbing systems. A minor storage closet accessed from a corridor would not alter system layout or equipment sizing, and thus doesn't necessitate a revision to this document.
* E. Initial Cost Estimate:While the estimate may eventually need updating during cost reconciliation, the question specifically asks which documents require revision. The initial estimate is a schematic- level document that doesn't necessarily need to be revised for such a minor addition.
* F. Specification Excerpts:Unless the closet introduces new materials (e.g., special finishes, fire- resistive construction, unique fixtures), the specifications remain unchanged. The closet is likely using standard finishes already defined elsewhere in the spec.
Key PDD Content Areas Referenced
* Section: Construction Documentation - Identifying how changes affect working drawings and specifications.
* Section: Contracts and Project Manual - Understanding the impact of scope changes on contract documents.
* Objective 4.2 - Evaluate and address changes in scope of work and scope creep.
* Objective 1.2 - Interpret contract documents to determine if revisions affect project scope, schedule, or budget.
NEW QUESTION # 42
Which of the following documents defines the responsibilities and duties of the contractor during construction?
- A. G702
- B. A201
- C. B101
- D. A101
Answer: B
Explanation:
A201 is the General Conditions of the Contract for Construction and outlines duties, rights, and responsibilities of the contractor. This includes site supervision, safety, and conformance with documents.
ARE Handbook Objective 1.4 focuses on interpreting contract documents.
NEW QUESTION # 43
A family-owned apple farm in the Upper Midwest is taking advantage of a change in the local zoning code that added a new Agri-Tourism class in the existing farm zone. This allows the Owner to build a new facility on their existing site. The building will be open to the public and include a brewery, distillery, tap room, and market. The architect is ready to submit the drawings to the Owner for the 50% construction documents review.
To accommodate a compressed construction schedule, the Owner will be utilizing a design-build process. The Contractor has submitted the Pre-Engineered Metal Building (PEMB) shop drawings to the Architect for review, due to the lead time on this critical path item. Once construction begins, farming operations must be able to continue uninterrupted.
Key project information includes:
* Brewing and distilling will operate year-round.
* Brewery will initially include four fermenting tanks. Owner has requested space for at least two additional tanks. Potential expansion will be based on future sales.
* Distillery will produce 16% alcohol, which is classified as a flammable liquid. Fire separations are required.
* Tap Room is designed with seating for 300 people, not including exterior patio seating. It will have views to the working orchards and the historic buildings on site.
* Tap Room is scheduled to be open from August through November. Owner would like options to extend operating dates based on popularity.
* The Market area will feature local farm products and is not conditioned.
* Entire building will be fully sprinklered.
* Selected building materials are low-maintenance, as requested by the Owner, for durability and to reflect the nature of a working farm.
* Mechanical and electrical systems will be hung from the building structure. These loads are included in PEMB shop drawings.
* Public water and sewer is not available at the Project Site.
* Occupancy sensors are included to reduce utility costs and achieve energy conservation requirements.
The following resources are available for your reference:
* Architectural Drawings, including plans, elevations, sections, and schedules
* Consultant Drawings, including structural, HVAC, power distribution, and plumbing
* PEMB Shop Drawings
* Design and Construction Schedule
* Specification Excerpts, showing relevant spec sections
* IBC and ADA Excerpts, showing relevant code and accessibility sections
* After reviewing the documents, the architect discovers a coordination issue in the corridor.
Which modification is required?
- A. Add access panel for shut-off valves.
- B. Relocate supply and return air diffusers.
- C. Add exit sign at door number 15.
Answer: A
Explanation:
At 50% CDs with early PEMB coordination and compressed schedule, typical cross-discipline clashes in corridors involve above-ceiling valves/dampers that lack required access from a public space. Plumbing and mechanical codes require accessible, labeled access panels for isolation/shut-off valves (and similar devices) located in concealed spaces so they can be serviced without disrupting operations-critical here because farm work must continue during construction/operation.
Exit sign at door #15 (A) depends on egress analysis; not a generic coordination issue.
Relocate diffusers (B) is a comfort/layout decision, not a compliance coordination issue unless they conflict with lights/sprinklers.
PDD refs: IMC/IPC provisions for access to valves and equipment in concealed spaces; Division 08/10 access panels; ARE 5.0 PDD-Coordination of MEP with architectural ceilings and corridors.
NEW QUESTION # 44
Before construction documents are complete, the owner requests a review of the timeline allowed for ASIs, RFIs, RFPs, and change orders as defined in the project manual.
Which section of the project manual is relevant to this request?
- A. Section 01 26 00 Contract Modification Procedures
- B. AIA Document A201
- C. Supplementary Conditions
- D. Section 01 35 16 Alteration Project Procedures
Answer: A
Explanation:
The owner's request for review of ASIs (Architect's Supplemental Instructions), RFIs (Requests for Information), RFPs (Requests for Proposals), and change orders relates to contract modifications.
Section 01 26 00 in the project manual typically covers Contract Modification Procedures, including timelines and processes for handling these changes.
AIA Document A201 is the general conditions but does not detail specific timelines.
Supplementary Conditions modify A201 but usually don't detail these timelines.
Section 01 35 16 is specific to alteration projects, not general contract mod procedures.
Reference:
NCARB ARE 5.0 Review Manual, Project Management chapter
CSI MasterFormat and project manual organization guides
NEW QUESTION # 45
The building permit plan review for a small, two-story residential project with a crawlspace issues the following comment to the architect:
"No under floor access shown in plans. Please locate and note locations of under floor access." Site conditions will not allow access to the crawlspace from the exterior.
What drawing will the architect need to update to satisfy the reviewer's comment?
- A. Main Floor Framing Plan
- B. Second Floor Framing Plan
- C. Foundation Plan
Answer: A
Explanation:
Understanding the Reviewer's Comment
* The under-floor access refers to an access opening to the crawlspace.
* Crawlspaces are located below the main floor framing and above the foundation.
* The International Residential Code (IRC) Section R408.4 requires access openings to under-floor spaces, either from the exterior or the interior.
* If site conditions prevent exterior access, access must be provided from inside the building - typically through a framed opening in the main floor.
Why the Main Floor Framing Plan is Correct
* Main Floor Framing Plan shows the joists, beams, and floor openings above the crawlspace.
* The under-floor access opening (often between joists, covered by a hatch) must be framed into the main floor structure to allow entry to the crawlspace.
* This plan will clearly show the location and framing details of the access hatch for contractor reference.
Why the Other Options Are Incorrect:
* A. Second Floor Framing Plan - The crawlspace is not under the second floor, so no access opening would be framed here.
* C. Foundation Plan - Shows foundation walls, footings, piers, and crawlspace layout, but the actual framed access opening is in the floor system above, not in the foundation drawing. The note about providing access might be referenced here, but the physical location and framing would be shown on the main floor framing plan.
NCARB ARE 5.0 PDD Study Guide References:
* Content Area: Integration of Building Materials & Systems - Coordination between structural drawings and code requirements.
* Code Reference: IRC R408.4 - Access Opening Requirements for Under-Floor Spaces.
* Source References:
* Architectural Graphic Standards - Crawlspace access detailing
* Building Construction Illustrated (Ching) - Floor framing over crawlspaces
NEW QUESTION # 46
The walls of typical light wood-frame buildings can most economically be made resistive to lateral shear forces, without major alteration to the existing structure, through the use of which one of the following?
- A. Wood gusset plates
- B. Exterior board sheathing run horizontally
- C. Moment-resistive connections
- D. Plywood sheathing
Answer: D
Explanation:
For light wood-frame buildings, the most economical way to develop lateral shear capacity-often without major structural alteration-is to add/upgrade wood structural panel (plywood/OSB) shear walls fastened to studs and plates per nailing schedules. This provides diaphragm and wall#shear resistance with minimal added framing.
A). Moment connections in wood are labor-intensive and uncommon in light framing.
C). Horizontal board sheathing provides limited shear compared to plywood.
D). Gusset plates do not create a continuous shear diaphragm/wall.
PDD refs: AWC SDPWS (wood shear walls & diaphragms); ARE 5.0 PDD-Structural systems for lateral loads in light-frame construction; IBC Ch. 23.
NEW QUESTION # 47
In which of the following locations should wood building products be pressure treated when used in a climate that promotes decay? Check the four that apply.
- A. Wood doors in contact with thresholds
- B. Wood members used in conjunction with roofing or flashing
- C. Wood members in contact with masonry or concrete
- D. Wood members at grade, below grade, or less than 8 inches above grade
- E. Wood window casing less than 24 inches above grade
- F. Wood siding closer than 6 inches to exterior finish grade
Answer: C,D,E,F
Explanation:
The IBC and AWPA (American Wood Protection Association) standards require pressure treatment of wood in decay-prone climates when in contact with moisture-retaining materials (masonry/concrete), near grade, or within splash zones.
A: Moisture can wick from masonry/concrete into wood # decay risk.
B: Close proximity to soil promotes decay/insect activity.
D: Siding <6" above grade risks splashback and prolonged wetting.
E: Window casings <24" above grade are exposed to rain splash.
C: Roofing/flashing interface doesn't require PT unless actual contact with wet substrate is expected.
F: Doors with thresholds don't require PT unless the door bottom is wood in constant wetting.
PDD Reference: IBC §2304.11; ARE 5.0 PDD "Materials-Wood decay & termite resistance."
NEW QUESTION # 48
......
Earn Quick And Easy Success With PDD Dumps: https://www.actualcollection.com/PDD-exam-questions.html
Kickstart your Career with Real Updated Questions: https://drive.google.com/open?id=1su8NqY5P7_2E6snMyWJRAeWPBW2Phho-
